AcuRev 1310 Series: Din-Rail Three-Phase Multifunction Power Energy Meter
DIN Rail Power and Energy Meter
AcuRev 1310 Series
The AcuRev 1310 DIN Rail meter combines high performance with ease of integration to provide a cost-effective power and energy monitoring solution. Featuring a built-in LCD display designed to simplify setup and local reading of meter data. While the Modbus-RTU and pulse output communication allows seamless integration with data acquisition systems.
- Utility Revenue Grade Accuracy - IEC 62053-22 0.5s Class / ANSI C12.20 0.5 Class
- Multiple CT Input Options compatible with any CT: 5A/1A, 333mV, Flexible Rogowski Coil, 80/100/200mA
- 4 Channel current input including neutral current measurement
- Residual current measurement available
- 10-690Vac direct voltage input, fits all voltage rating system with one model
- RS-485 port built-in with Modbus-RTU and BACnet MS/TP, standard integration with most systems
- Standard Din-rail mount for ease-of-installation
- Compatible with both 50Hz and 60Hz systems
- Built-in energy pulse output and alarm output
- Optional relay output for alarm and remote control
- Tamper-proof design approved for revenue applications
Universal Rating
AcuRev 1310 DIN rail power meters are capable, and compatible multi-circuit metering.
Voltage: Measuring from 10V to 400VL-N 690VL-L that works with most voltage ratings without a Potential Transformer. Potential transformer ratio configuration supported for high voltage systems where PT is used.
Frequency: Automatically adapt to 50Hz and 60Hz system without compromising the accuracy, which simplifies design and eliminates international OEM frequency issues.
AcuRev Power Meter Features
AcuRev 1310 series DIN rail power meter offers customizable features for your application
Four Channel CT Input
Accurately measure neutral current with 4th current transformer and provides residual current measurement.
Auto Phase-Check
Designed to automatically check most common wiring mistakes such as current transformer direction, voltage and current phase alignment.
Supports All Electrical System Configurations
Three phase three wire (3P3W), 3 phase four wire (3P4W), single phase three wire (1P3W two element), single phase two wire (1P2W one element) and more.
AcuRev Energy Meter Models
The AcuRev 1310 series DIN rail power meter is available in a number of configurations.
AcuRev 1311 | AcuRev 1312 | AcuRev 1313 | AcuRev 1314 | |
|---|---|---|---|---|
| Bi-directional Energy Measurements | ||||
| Active Energy | ||||
| Reactive Energy | ||||
| Apparent Energy | ||||
| Time of Use | ||||
| Power Demand | ||||
| Peak Power Demand | ||||
| Predictive Demand (existing in AcuRev 2000) | ||||
| Current Demand | ||||
| Peak Current Demand | ||||
| Voltage | ||||
| Current | ||||
| Neutral Current | Calculated | Calculated | Calculated | |
| Residual current | Calculated | |||
| Active Power | ||||
| Reactive Power | ||||
| Apparent Power | ||||
| Power Factor | ||||
| Frequency | ||||
| Clock | ||||
| Running Time | ||||
| Energy Pulse Output | ||||
| Relay Output (Alarm or control) | ||||
| RS485 Modbus-RTU | ||||
| RS485 BACnet-MSTP | ||||
| Wiring Check | ||||
| Temperature (Internal) | ||||
| SunSpec | ||||
| Current Transformer (CT) Input | 5A/1A: Field-Configurable 5A or 1A Current Transformer Input 333mV: 333mV Current Transformer Input RCT: Flexible Rogowski Coil Current Transformer Input 80/100/200mA: Field-Configurable 80mA, 100mA or 200mA Current Transformer Input | |||
| I/O Options: | One Relay output for alarm and remote control | |||
AcuRev 1311 | |
|---|---|
| Active Energy | |
| Voltage | |
| Current | |
| Neutral Current | Calculated |
| Active Power | |
| Running Time | |
| Energy Pulse Output | |
| Wiring Check | |
| Temperature (Internal) | |
| SunSpec | |
| Current Transformer (CT) Input | 5A/1A: Field-Configurable 5A or 1A Current Transformer Input 333mV: 333mV Current Transformer Input RCT: Flexible Rogowski Coil Current Transformer Input 80/100/200mA: Field-Configurable 80mA, 100mA or 200mA Current Transformer Input |
| I/O Options: | One Relay output for alarm and remote control |
AcuRev 1312 | |
|---|---|
| Active Energy | |
| Reactive Energy | |
| Apparent Energy | |
| Time of Use | |
| Power Demand | |
| Peak Power Demand | |
| Predictive Demand (existing in AcuRev 2000) | |
| Current Demand | |
| Peak Current Demand | |
| Voltage | |
| Current | |
| Neutral Current | Calculated |
| Active Power | |
| Reactive Power | |
| Apparent Power | |
| Power Factor | |
| Frequency | |
| Clock | |
| Running Time | |
| Energy Pulse Output | |
| Relay Output (Alarm or control) | |
| RS485 Modbus-RTU | |
| RS485 BACnet-MSTP | |
| Wiring Check | |
| Temperature (Internal) | |
| SunSpec | |
| Current Transformer (CT) Input | 5A/1A: Field-Configurable 5A or 1A Current Transformer Input 333mV: 333mV Current Transformer Input RCT: Flexible Rogowski Coil Current Transformer Input 80/100/200mA: Field-Configurable 80mA, 100mA or 200mA Current Transformer Input |
| I/O Options: | One Relay output for alarm and remote control |
AcuRev 1313 | |
|---|---|
| Bi-directional Energy Measurements | |
| Active Energy | |
| Reactive Energy | |
| Apparent Energy | |
| Time of Use | |
| Power Demand | |
| Peak Power Demand | |
| Predictive Demand (existing in AcuRev 2000) | |
| Current Demand | |
| Peak Current Demand | |
| Voltage | |
| Current | |
| Neutral Current | Calculated |
| Active Power | |
| Reactive Power | |
| Apparent Power | |
| Power Factor | |
| Frequency | |
| Clock | |
| Running Time | |
| Energy Pulse Output | |
| Relay Output (Alarm or control) | |
| RS485 Modbus-RTU | |
| RS485 BACnet-MSTP | |
| Wiring Check | |
| Temperature (Internal) | |
| SunSpec | |
| Current Transformer (CT) Input | 5A/1A: Field-Configurable 5A or 1A Current Transformer Input 333mV: 333mV Current Transformer Input RCT: Flexible Rogowski Coil Current Transformer Input 80/100/200mA: Field-Configurable 80mA, 100mA or 200mA Current Transformer Input |
| I/O Options: | One Relay output for alarm and remote control |
AcuRev 1314 | |
|---|---|
| Bi-directional Energy Measurements | |
| Active Energy | |
| Reactive Energy | |
| Apparent Energy | |
| Time of Use | |
| Power Demand | |
| Peak Power Demand | |
| Predictive Demand (existing in AcuRev 2000) | |
| Current Demand | |
| Peak Current Demand | |
| Voltage | |
| Current | |
| Neutral Current | |
| Residual current | Calculated |
| Active Power | |
| Reactive Power | |
| Apparent Power | |
| Power Factor | |
| Frequency | |
| Clock | |
| Running Time | |
| Energy Pulse Output | |
| Relay Output (Alarm or control) | |
| RS485 Modbus-RTU | |
| RS485 BACnet-MSTP | |
| Wiring Check | |
| Temperature (Internal) | |
| SunSpec | |
| Current Transformer (CT) Input | 5A/1A: Field-Configurable 5A or 1A Current Transformer Input 333mV: 333mV Current Transformer Input RCT: Flexible Rogowski Coil Current Transformer Input 80/100/200mA: Field-Configurable 80mA, 100mA or 200mA Current Transformer Input |
| I/O Options: | One Relay output for alarm and remote control |
Current Transformers
Compatible with multiple flexible and split-core CT options.
NEMA4X Wall-mount Enclosure

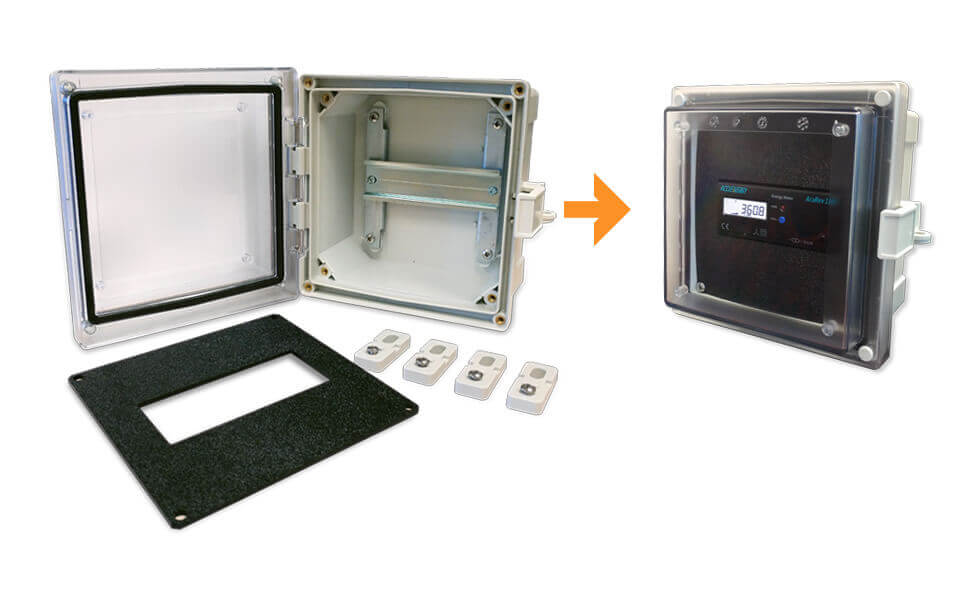

Wall mount enclosure for AcuRev 1310 series
