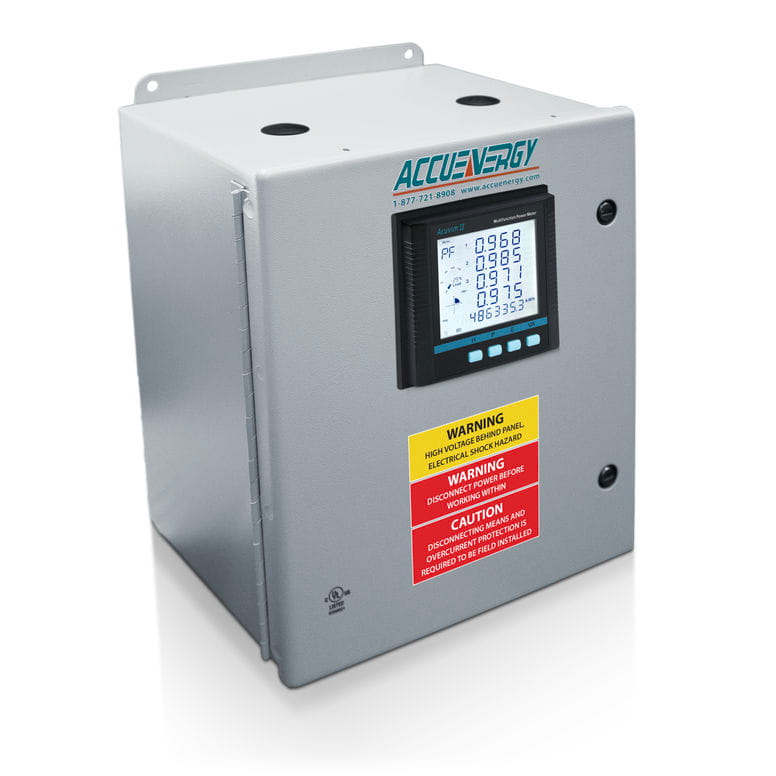

AcuPanel 9100 - top right quarter angle view.

Pre-Wired Power & Energy Panel Meter

AcuPanel 9100 Series

The AcuPanel 9100 Series is a convenient pre-configured, pre-wired power and energy panel meter that provides an ideal solution for OEM, retrofit projects where installation inside an electrical distribution panel is not an option or in harsh environments where additional protection is needed to safeguard instrumentation. The factory pre-wiring will greatly save installation time and reduce frustrating wiring errors that can lead to inaccurate data. Each AcuPanel panel meter enclosure is quality tested prior to shipment to ensure years of dependable use.

  • Factory pre-configuration eliminates on-site meter programming
  • Required metering components are pre-installed & pre-wired
  • The plug-and-play design saves valuable installation time at the jobsite
  • Wiring and installation errors are virtually eliminated, ensuring data integrity
  • The panel is self-powered and does not require a separate power supply
  • Available in two configurations: As a NEMA 4-rated steel panel ideal for indoor applications or as a NEMA 4X-rated enclosure designed for harsh outdoor conditions

AcuPanel 9100 Overview

Select a Panel Enclosure Model

The AcuPanel pre-wired power and energy panel meter is available in two variations to ensure a successful installation in any environment. Choose from a NEMA 4-rated steel enclosure for indoor installations or a NEMA 4X-rated polycarbonate enclosure suitable for outdoor use. Note that certain meter models are only available to be installed in a NEMA 4X enclosure.

Select a Meter

The AcuPanel 9100 Series is compatible with a variety of Accuenergy power and energy meters. Whether you need the high-precision, single-circuit Acuvim II or a capable, multi-channel AcuRev 2100, there is a convenient, pre-wired AcuPanel solution designed to match your specific metering requirements. The AcuPanel is also available for the economical Acuvim L Series and the EV300 Series multifunction meter.

Choose a Current Input Option

Accuenergy meters are designed to monitor loads ranging from individual circuits to building mains and are pre-configured with a current transformer input option. Depending on your meter selection, CT input options may include 5A, mA, RCT (Rogowski), 333mV, or DC sensors. Determine the right CT for your project, then select a matching current input option.

Select a Power Supply Option

Your selected meter may also have multiple power supply options to choose from. For example, Acuvim Series and AcuDC Series instruments are pre-configured with one of two power supply options. Review the characteristics of the system you wish to monitor to determine which power supply option is suitable for your application.

Choose Other Options for the Meter

Based on your meter selection, choose additional options for your instrument such as communication or I/O modules. The panel meter and selected options will be enclosed in the AcuPanel, pre-configured, and ready for deployment.

AcuPanel 9100 group.

AcuPanel 9100 Models

AcuPanel 9104
AcuPanel 9104X
AcuPanel 9104X-DC
AcuPanel 9106X
Compatible MetersAcuvim II, Acuvim IIBN, Acuvim L, EV300Acuvim II, Acuvim IIBN, Acuvim L, EV300 AcuDC 240AcuRev 2100
ApplicationIndoor installations that require rugged protection, but not weather resistanceIndoor or outdoor installations that require exceptional environmental protection and weather resistance
NEMA RatingNEMA 4NEMA 4XNEMA 4XNEMA 4X
MaterialSteelPolycarbonatePolycarbonatePolycarbonate
Anti-Corosive
Dust-Proof
Suitable for Indoor Use
Suitable for Outdoor Use
Pre-Wired
Pre-Configured
AcuPanel 9104
Compatible MetersAcuvim II, Acuvim IIBN, Acuvim L, EV300
ApplicationIndoor installations that require rugged protection, but not weather resistance
NEMA RatingNEMA 4
MaterialSteel
Dust-Proof
Suitable for Indoor Use
Pre-Wired
Pre-Configured
AcuPanel 9104X
Compatible MetersAcuvim II, Acuvim IIBN, Acuvim L, EV300
ApplicationIndoor or outdoor installations that require exceptional environmental protection and weather resistance
NEMA RatingNEMA 4X
MaterialPolycarbonate
Anti-Corosive
Dust-Proof
Suitable for Indoor Use
Suitable for Outdoor Use
Pre-Wired
Pre-Configured
AcuPanel 9104X-DC
Compatible MetersAcuDC 240
ApplicationIndoor or outdoor installations that require exceptional environmental protection and weather resistance
NEMA RatingNEMA 4X
MaterialPolycarbonate
Anti-Corosive
Dust-Proof
Suitable for Indoor Use
Suitable for Outdoor Use
Pre-Wired
Pre-Configured
AcuPanel 9106X
Compatible MetersAcuRev 2100
ApplicationIndoor or outdoor installations that require exceptional environmental protection and weather resistance
NEMA RatingNEMA 4X
MaterialPolycarbonate
Anti-Corosive
Dust-Proof
Suitable for Indoor Use
Suitable for Outdoor Use
Pre-Wired
Pre-Configured

AcuPanel 9100 Features

Clean factory wiring icon.
Clean Factory Wiring

All AcuPanel models feature reliable, factory-testing wiring connections with clear, easy-to-read labels. Frustrating wiring errors will be prevented, streamlining the installation process and eliminating data errors.

Components included icon.
Components Included

From shorting blocks for current transformer inputs to fused terminal blocks for voltage connections, all components are factory-assembled, color-coded, and labeled for easy connection and rapid installation.

Pre-cut enclosure icon.
Pre-Cut Enclosure

Two, pluggable holes are pre-drilled into the bottom of the AcuPanel enclosure that allow for wiring to be easily routed to the circuit blocks without requiring any additional enclosure modifications.

Meter Compatibility

ACUPANEL 9104X
Acuvim II AcuPanel 9104 enclosure.
Advanced Power & Energy Meter
Acuvim II Series

Learn More

Acuvim IIBN AcuPanel 9104 enclosure.
BACnet Power Meter
Acuvim IIBN Series

Learn More

Acuvim L AcuPanel 9104 enclosure.
Power And Energy Panel Meters
Acuvim L Series

Learn More

Acuvim II AcuPanel 9104 enclosure.
Power & Energy Panel Meter
EV300 Series

Learn More

ACUPANEL 9104
Acuvim II AcuPanel 9104X enclosure.
Advanced Power & Energy Meter
Acuvim II Series

Learn More

Acuvim IIBN AcuPanel 9104X enclosure.
BACnet Power Meter
Acuvim IIBN Series

Learn More

Acuvim L AcuPanel 9104X enclosure.
Power And Energy Panel Meters
Acuvim L Series

Learn More

Power & Energy Panel Meter
EV300 Series

Learn More

AcuDC 240 AcuPanel 9104X enclosure.
DC Power and Energy Meter
AcuDC 240 Series

Learn More

ACUPANEL 9106X
AcuRev 2100 AcuPanel 9106X enclosure.
Multi-Circuit Submeter
AcuRev 2100 Series

Learn More

Custom OEM Solutions

Partner with Accuenergy to deliver a custom, OEM panel solution to suit your unique metering application.
  • Custom-brand the AcuPanel to showcase your logo.
  • Add specialized OEM components such as gateways, cellular modems, or power supplies to adapt the panel to your application.
  • Large or small, specify custom panel dimensions to accomodate your individual installation.
  • From product recommendations to installation advice, our energy metering specialists are ready to help you customize a solution.
AcuPanel enclosures.
