Digital I/O, Analog I/O and Relay Communication Modules
Acuvim II Communication Modules
Snap-on expansion modules available for the Acuvim II line of high performance power and energy meters.
Acuvim II Meter | AXM | AXM | AXM | AXM | AXM | |
|---|---|---|---|---|---|---|
| Order Online | Order Online | Order Online | Order Online | |||
| MODBUS-RTU | ||||||
| DNP 3.0 Over IP | ||||||
| IEC 61850 | ||||||
| MODBUS-TCP | ||||||
| HTTP/HTTPs Webserver | ||||||
| SMTP Email | ||||||
| SNMP V3 | ||||||
| HTTP/HTTPs Push | ||||||
| FTP Post | ||||||
| sFTP Server | ||||||
| Datalogging | 8MB | 8GB | 8GB | |||
| BACnet-MS/TP | ||||||
| BACnet-IP | ||||||
| PROFIBUS | ||||||
| WiFi | ||||||
| Dual RJ45 Ports | ||||||
| Fiber Optics LC | ||||||
| RF |
Acvuim II Meter | |
|---|---|
| MODBUS-RTU | |
| BACnet MS/TP | |
| Datalogging | 8 MB |
AXM WEB2 FOLC | |
|---|---|
| DNP 3.0 Over IP | |
| IEC 61850 | |
| MODBUS-TCP | |
| HTTP/HTTPs Webserver | |
| SMTP Email | |
| SNMP V3 | |
| HTTP/HTTPs Push | |
| FTP Post | |
| sFTP Server | |
| Datalogging | 8 GB |
| BACnet-IP | |
| WiFi | |
| Dual RJ45 Ports | |
| Fiber Optics LC | |
AXM WEB2 | |
|---|---|
| DNP 3.0 Over IP | |
| IEC 61850 | |
| MODBUS-TCP | |
| HTTP/HTTPs Webserver | |
| SMTP Email | |
| SNMP V3 | |
| HTTP/HTTPs Push | |
| FTP Post | |
| sFTP Server | |
| Datalogging | 8 GB |
| BACnet-IP | |
| WiFi | |
| Dual RJ45 Ports | |
AXM PROFI | |
|---|---|
| PROFIBUS | |
AXM RS485 | |
|---|---|
| MODBUS RTU | |
AXM MESH | |
|---|---|
| RF | |

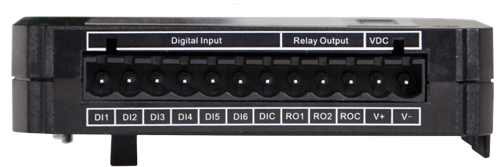

AXM-IO1
6x digital inputs
24Vdc power for digital inputs
2x relay outputs

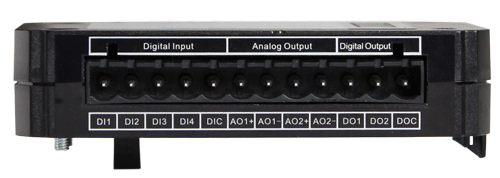

AXM-IO2
4x digital inputs
2x digital outputs
2x analog outputs

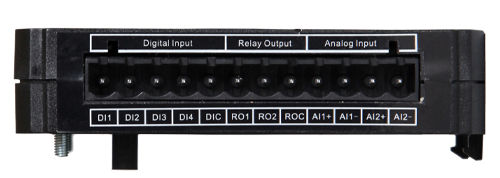

AXM-IO3
4x digital inputs
2x relay outputs
2x analog inputs
AcuDC Communication Modules
Plug-in expansion modules available for the AcuDC line of DC power and energy meters are ordered with the meters
Digital Input (DI) | Analog Output (AO) | Analog Input (AI) | Relay Output (RO) | Digital Output (DO) | Hall Effect Sensor Power Supply | |
|---|---|---|---|---|---|---|
| X1 | 2 | 2 (4~20mA/0~20mA) | ||||
| X2 | 2 | 2 (0~5V/1~5V) | ||||
| X3 | 2 | 2 | ||||
| X4 | 2 | 2 | ||||
| X5 | 2 | +/-15Vdc | ||||
| X6 | 2 (4~20mA/0~20mA) | +/-15Vdc | ||||
| X7 | 2 (0~5V/1~5V) | +/-15Vdc |
Digital Input (DI) | |
|---|---|
| X1 | 2 |
| X2 | 2 |
| X3 | 2 |
| X4 | 2 |
| X5 | 2 |
Analog Output (AO) | |
|---|---|
| X1 | 2 (4~20mA/0~20mA) |
| X2 | 2 (0~5V/1~5V) |
Analog Input (AI) | |
|---|---|
| X6 | 2 (4~20mA/0~20mA) |
| X7 | 2 (0~5V/1~5V) |
Relay Input (RO) | |
|---|---|
| X3 | 2 |
Digital Input (DO) | |
|---|---|
| X4 | 2 |
Hall Effect Sensor Power Supply | |
|---|---|
| X5 | +/-15Vdc |
| X6 | +/-15Vdc |
| X7 | +/-15Vdc |
